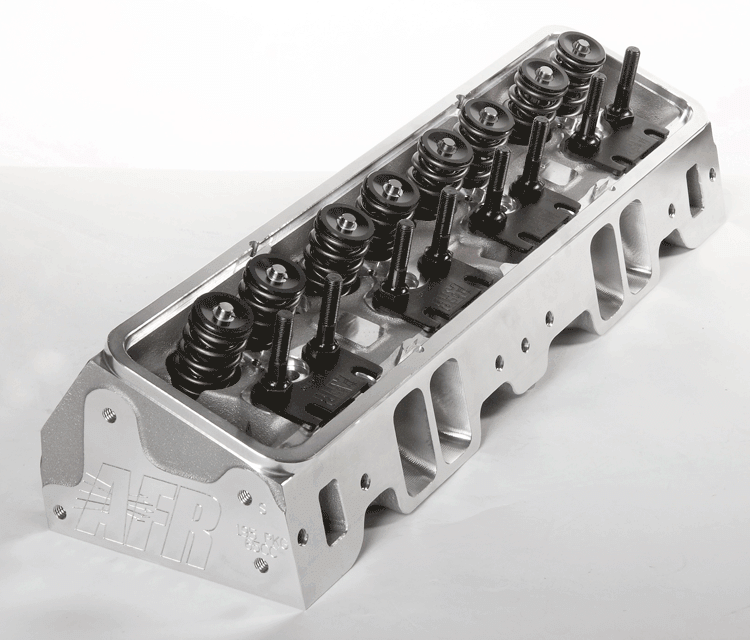

AFR 180cc SBC Cylinder Heads
These are the *NEW* Eliminator version of AFR's 180 cc aluminum cylinder heads which include the all new LS1 style lightweight valvetrain with 8mm valves, lightweight springs, matching retainers and hydraulic roller springs which are good for .600 max lift.
Includes 100% CNC ported combustion chambers, intake ports, and exhaust ports along with a competition 3 angle valve job. Includes 3/8 rocker studs, 5/16 guide plates, 1.290" OD hydraulic roller dual valve springs (135 lbs. on seat, .600" maximum lift with upgrades available, comp package .650" max lift), 2.020" intake valves, 1.600" exhaust valves, 65cc or 75cc combustion chambers, 64cc exhaust ports, 7 degree 4140 chrome moly steel retainers and 7 degree valve locks with bronze guides.
Includes 100% CNC ported combustion chambers, intake ports, and exhaust ports along with a competition 3 angle valve job. Includes 3/8 rocker studs, 5/16 guide plates, 1.290" OD hydraulic roller dual valve springs (135 lbs. on seat, .600" maximum lift with upgrades available, comp package .650" max lift), 2.020" intake valves, 1.600" exhaust valves, 65cc or 75cc combustion chambers, 64cc exhaust ports, 7 degree 4140 chrome moly steel retainers and 7 degree valve locks with bronze guides.
FREE Shipping on ALL AFR Heads!!!
Price: $1,510.00
SALE: $1,464.70
SALE: $1,464.70
Click on image to zoom »
Item Description »
The Small Port, High Velocity Torque Monster!
The AFR Emissions Legal (versions from 1969-94 with heat riser, CARB EO #D-250-2), 180cc intake port small block Chevy cylinder heads are available in your choice of straight or L98 angle plug versions. These heads feature a 75cc or 65cc combustion chamber with a 64cc exhaust port and a 3/4" thick head deck (ideal for nitrous or blower applications.) Standard valves are lightweight 8mm 2.020 intake and 1.600 exhaust with AFR’s hardened ductile iron interlocking valve seats. The exceptional flow characteristics, ideal operating range of idle to 5500 rpm (higher rpm ranges possible depending on combination of parts), 23º valve angle, and standard valve spacing make this the perfect street aluminum cylinder head for 327 cid to 350 cid engines from 1955-86. Also available for 1987 to present engines with center bolt valve covers and 2 center intake bolts at 72º angle, AFR Part #0919. No special parts are required. Vortec style cylinder heads available also, AFR Part #0912. Dual valve cover bolt pattern is standard. The exhaust ports are raised .100" over a standard GM L-98 cylinder head.
Note:
Hydraulic roller cams typically experience valve float at 6000-6200 rpm because of their fast ramp rates. AFR suggests you upgrade your springs to AFR part #8047, 1.290 O.D. with higher spring pressures to reduce chances of valve float associated with rpm's 6200 or higher for $99, but smaller cams with less than .500 lift can rev to 6500 rpm with the included springs.

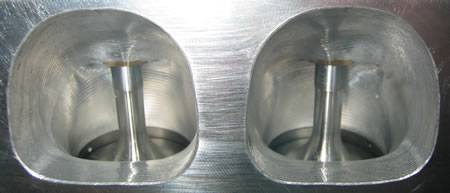

100% CNC Ported Exhaust Ports

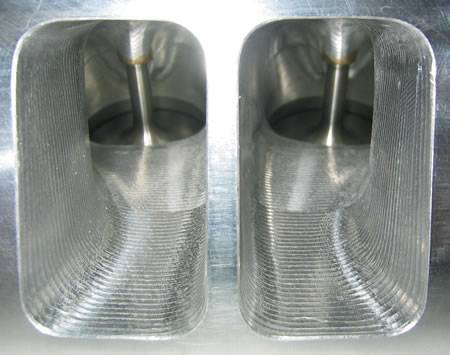

100% CNC Ported Intake Ports
3-angle Valve Job
Intake Valve, 2.020" standard length, AFR #7204 Comp PKG #7002
Exhaust Valve, 1.600" standard length, AFR #7219 Comp PKG #7057
1.290" O.D. Dual Hydraulic Valve Spring, 135 lbs. on seat, .600" maximum lift #8017, Comp PKG #8019 .650" max lift
7 degree 4140 Chrome Moly Retainers, AFR #8510
7 degree Valve Locks, AFR #9005
3/8" Rocker Studs, AFR #6410
Guide Plates, AFR #6105
Valve Seals, AFR #6611
Hardened Shims, AFR #8043
Intake Valve Seats, AFR #9060
Exhaust Valve Seats, AFR #9070
Bronze Valve Guides, AFR #9050
All Accessory Holes are Predrilled & Tapped!
Rocker Stud Torque 55-60 Ft. Lbs.
Intake Port Gasket, 1.230"x1.990" w/ 3/8" Radius, AFR #6815
Important: Do not port match you intake manifold to this Fel-Pro gasket, as they do not exactly fit AFR heads.
Exhaust Port Gasket Fel Pro #1404, AFR #6834
Head Gasket 350cid Fel Pro #1003, AFR #6800
400cid Fel Pro #1014, AFR #6802
Head Bolts & Studs Standard ARP, AFR #6310 & #6305
Head Bolt Washers Manley, AFR #6320
Stud Girdle AFR #6201
Suggested Manifold Edelbrock #3701, AFR #5029
Spark Plug Starting Range AC FR3LS
Combustion Chambers 65cc or 75cc
Spring Pocket can be cut to 1.625, no deeper.
Valve Spacing Standard
Rocker Arms Standard
Valve Angle 23 degree
Angle Mill (milling available) .008" per cc
Flat Mill (milling available) .006" per cc
Pushrods 5/16 inch Hardened AFR #6600 & #6601
Note: Milling head deck will affect flow numbers
The AFR Emissions Legal (versions from 1969-94 with heat riser, CARB EO #D-250-2), 180cc intake port small block Chevy cylinder heads are available in your choice of straight or L98 angle plug versions. These heads feature a 75cc or 65cc combustion chamber with a 64cc exhaust port and a 3/4" thick head deck (ideal for nitrous or blower applications.) Standard valves are lightweight 8mm 2.020 intake and 1.600 exhaust with AFR’s hardened ductile iron interlocking valve seats. The exceptional flow characteristics, ideal operating range of idle to 5500 rpm (higher rpm ranges possible depending on combination of parts), 23º valve angle, and standard valve spacing make this the perfect street aluminum cylinder head for 327 cid to 350 cid engines from 1955-86. Also available for 1987 to present engines with center bolt valve covers and 2 center intake bolts at 72º angle, AFR Part #0919. No special parts are required. Vortec style cylinder heads available also, AFR Part #0912. Dual valve cover bolt pattern is standard. The exhaust ports are raised .100" over a standard GM L-98 cylinder head.
Note:
Hydraulic roller cams typically experience valve float at 6000-6200 rpm because of their fast ramp rates. AFR suggests you upgrade your springs to AFR part #8047, 1.290 O.D. with higher spring pressures to reduce chances of valve float associated with rpm's 6200 or higher for $99, but smaller cams with less than .500 lift can rev to 6500 rpm with the included springs.
Basic Package Components:

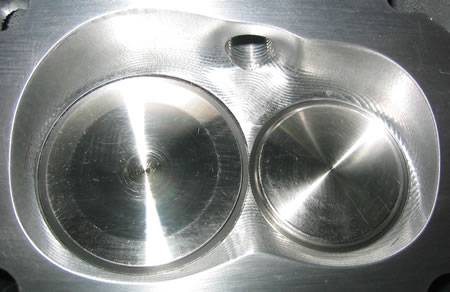

100% CNC Ported Combustion Chambers100% CNC Ported Exhaust Ports
100% CNC Ported Intake Ports
3-angle Valve Job
Intake Valve, 2.020" standard length, AFR #7204 Comp PKG #7002
Exhaust Valve, 1.600" standard length, AFR #7219 Comp PKG #7057
1.290" O.D. Dual Hydraulic Valve Spring, 135 lbs. on seat, .600" maximum lift #8017, Comp PKG #8019 .650" max lift
7 degree 4140 Chrome Moly Retainers, AFR #8510
7 degree Valve Locks, AFR #9005
3/8" Rocker Studs, AFR #6410
Guide Plates, AFR #6105
Valve Seals, AFR #6611
Hardened Shims, AFR #8043
Intake Valve Seats, AFR #9060
Exhaust Valve Seats, AFR #9070
Bronze Valve Guides, AFR #9050
All Accessory Holes are Predrilled & Tapped!
Specifications, Features, and Supporting Components:
Head Torque 65-70 Ft. Lbs.Rocker Stud Torque 55-60 Ft. Lbs.
Intake Port Gasket, 1.230"x1.990" w/ 3/8" Radius, AFR #6815
Important: Do not port match you intake manifold to this Fel-Pro gasket, as they do not exactly fit AFR heads.
Exhaust Port Gasket Fel Pro #1404, AFR #6834
Head Gasket 350cid Fel Pro #1003, AFR #6800
400cid Fel Pro #1014, AFR #6802
Head Bolts & Studs Standard ARP, AFR #6310 & #6305
Head Bolt Washers Manley, AFR #6320
Stud Girdle AFR #6201
Suggested Manifold Edelbrock #3701, AFR #5029
Spark Plug Starting Range AC FR3LS
Combustion Chambers 65cc or 75cc
Spring Pocket can be cut to 1.625, no deeper.
Valve Spacing Standard
Rocker Arms Standard
Valve Angle 23 degree
Angle Mill (milling available) .008" per cc
Flat Mill (milling available) .006" per cc
Pushrods 5/16 inch Hardened AFR #6600 & #6601
Note: Milling head deck will affect flow numbers
