Dodge Stealth VR4 Turbo 1000cc Fuel Injectors
PL4-1000
These RC Engineering 1000cc Low Resistance Peak and Hold fuel injectors are flow matched and will fit every model, engine, type or style for the following vehicles:
ALL Dodge Stealth VR4 Turbo
Part # PL4-1000
ALL Dodge Stealth VR4 Turbo
Part # PL4-1000
Shipping: Free domestic shipping on all RC fuel injectors.
Was:
$592.50
Sale:
$533.25
Description

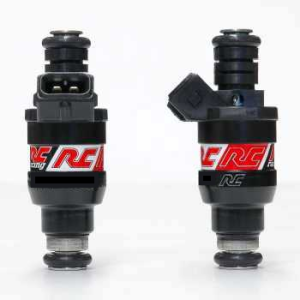

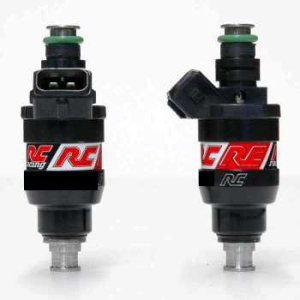

Included: 6 Denso style injectors and flow sheets. The photo is an example of a similar set.
Notes:
1) You must have your computer setup for low impedance.
2) If you would like new OBD1 Bosch EV1 center notch style injector clips, please select them from the drop down menu above - additional $29.95.
Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes
Specifications
Flow Rate in CC per minute: 1000CC/min @ 43.5 PSI
Flow Rate in LB per hour: 95LBS/HR @ 43.5 PSI
Resistance: 2.5 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: Peak 4.0 Amps / Hold 1.5 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: PL4-1000
Warranty: 1 year warranty!
Notes:
1) You must have your computer setup for low impedance.
2) If you would like new OBD1 Bosch EV1 center notch style injector clips, please select them from the drop down menu above - additional $29.95.
Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes
Specifications
Flow Rate in CC per minute: 1000CC/min @ 43.5 PSI
Flow Rate in LB per hour: 95LBS/HR @ 43.5 PSI
Resistance: 2.5 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: Peak 4.0 Amps / Hold 1.5 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: PL4-1000
Warranty: 1 year warranty!
Details
- PL4-1000
- PL4-1000
- RC Engineering
- New
Shipping Information
- Item Requires Shipping
- 2.0 lbs.
- W5.0000” x H5.0000” x L5.0000”
- Free domestic shipping on all RC fuel injectors.
