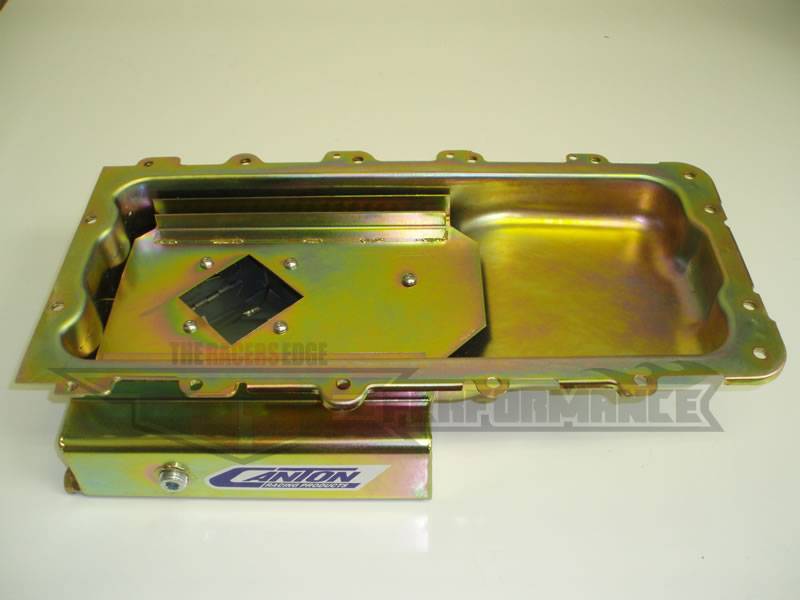

Ford Mustang 4.6/5.4 Canton 7 Quart Rear Sump Oil Pan Kit Car

SKU: 15-794

This “T” style modular rear sump road race oil pan is designed to install a 4.6/5.4 into a kit car without losing ground clearance. It has 5" deep, 11-1/2" wide by 10-1/2" long sump and a 7 quart system capacity. This pan includes our four trap door baffle and directional runner system with a bolt in slosh baffle for oil control. In addition, these pans include a temperature fitting and a magnetic drain plug. This pan requires our 15-795 2v pickup.

Was: $374.40

Sale: $312.00

Description

FEATURES: Track proven road race baffle assembly with four trap doors and runners to direct oil to the pickup under all conditions, bolt in slosh baffle, temp. fitting and magnetic drain plug.

STYLE: T style sump designed to install a 4.6/5.4 into a kit car without losing ground clearance.

SIZE: 5" Deep, 11 1/2" wide by 10 1/2" Long sump gives a 7 quart capacity.

OIL PAN PART #: 15-794 for 4.6L/5.4L engines in a kit car.

RECOMMENDED ACCESSORIES:

OIL PUMP PICKUPS:
PART #: 15-795 is a pickup which can be used for 4.6 2V and 5.4 2V pumps.

GASKETS:
PART #: 88-780 Oil pan gasket for 4.6 and 5.4 Fords

WINDAGE TRAY:
PART #: 20-939 Ford 4.6/5.4 Ford Screen Windage Tray mounts between the oil pan and block, these trays keep the windage around the rotating assembly away from the oil in the sump and the oil in the sump away from the rotating assembly. Includes oil pan studs and nuts.
