RC Fuel Injectors Mazda RX-7 1986-1987 (to early '87) 1600cc
PB2-1600
RC Engineering is the world's leading supplier of made-to-order, high-performance, electronic fuel injectors.
These 1600cc Low Resistance(Approx. 2.5/3 OHMS) Peak and Hold fuel injectors are flow matched and will fit all 86-87 (to early '87) Mazda RX-7s, but you MUST have your computer setup for low impedance.
These 1600cc Low Resistance(Approx. 2.5/3 OHMS) Peak and Hold fuel injectors are flow matched and will fit all 86-87 (to early '87) Mazda RX-7s, but you MUST have your computer setup for low impedance.
Shipping: Free domestic shipping on all RC fuel injectors.
Was:
$296.00
Sale:
$266.40
Description

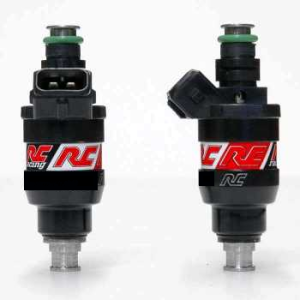

Included: 2 injectors and flow sheets. The photo is an example of a similar set.
Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes
Specifications
Flow Rate in CC per minute: 1600CC/min @ 43.5 PSI
Flow Rate in LB per hour: 152LBS/HR @ 43.5 PSI
Resistance: 5.0 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: Peak 2.5 Amps/ Hold 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: PB2-1600
Spacers/O-rings Included: YES
Warranty: 1 year warranty!
Size Calculation
To determine what size injectors you should use, please visit : RC Engineering's Technical Notes
Specifications
Flow Rate in CC per minute: 1600CC/min @ 43.5 PSI
Flow Rate in LB per hour: 152LBS/HR @ 43.5 PSI
Resistance: 5.0 ohms
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: Peak 2.5 Amps/ Hold 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Part Number: PB2-1600
Spacers/O-rings Included: YES
Warranty: 1 year warranty!
